Electronic Design Now

Bluetooth Projects

I have recently worked on a number of Bluetooth devices. For all these projects I have only designed the electronics and PCB. I have not implemented the enclosures, firmware or phone applications. Here are some examples:

ECG Monitor

This device is a wearable, comfortable, unobtrusive and compact physiological monitoring device that incorporates ECG, accelerometer and body temperature sensors.

ECG Monitor

Heart Rate Control

This is a discreet biosensing patch that measures your heart and breath. Lief teaches you to control your body's natural stress response through gentle, safe biofeedback exercises. Reduce triggered responses and keep mindful and in control throughout your day.

Heart Rate Control

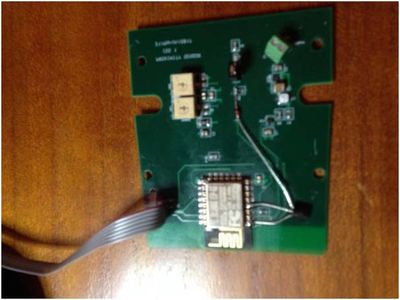

Hand Wash Detection



This device can wirelessly record the frequency

of:

Handwashing at sinks,

Gloves and aprons dispensed

Hand gel usage


It runs on two small AAA batteries that can last about 3 months by using an ultra low current proximity sensor

A green chipset

Pressure Measurement

 The system will be used to  log airbag pressures for a minimum of 12 hours at 500 Hz frequency, and use wireless to relay this information to a smartphone app for exporting via email. The system will also monitor acceleration and rotation via an accelerometer and gyroscope

A control board

Backup Power Controller

This is device is based around the ESP8266

Electromagnetic flowmeter design

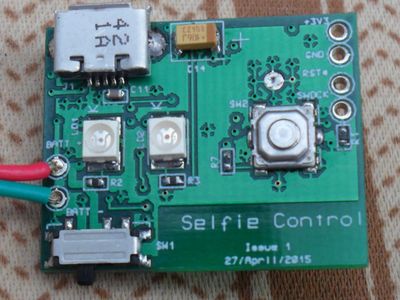

Selfi Camera Control

This module allows remote control of the camera via a Bluetooth interface.

Selfie Camera Control

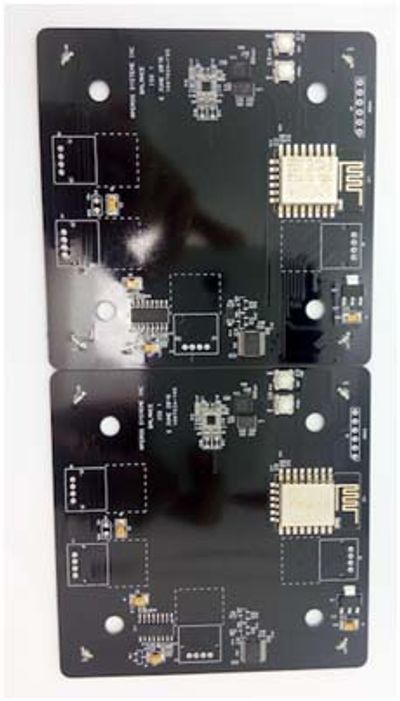

Weight Measurement

  A device to weigh bottles and read the NFC code on the base.

A black microchip

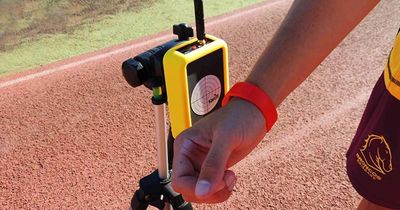

Timing System for Track Athletes

One device situated at the start line, and multiple devices down the track with IR beams to detect when the athlete passes each point. By recording their split and finish times the system can be used to analyze and improve performance.

Timing System for Track Athletes

Baby Pacifier

The smart baby pacifier is unique in that it records a baby's temperature and passes it to a parent's smartphone where it can be tracked and medication recorded.


The ability to plot the effect medication has on temperature is particularly useful - no more scrambling for a pen and paper or trying to remember in your head. With useful reminders and alerts it becomes a peace of mind at stressful times.


It comes with a range of other useful features, such as the ability to find the pacifier with your smartphone as well as a proximity feature that alerts your smartphone if the pacifier moves away from you.

A baby pacifier

Environment Monitor

This is a sophisticated temperature, humidity and barometric pressure smartphone-based environment monitor that can be used in a wide variety of scenarios - from hotels and guest accommodation and a baby's nursery through to businesses that need to monitor cooled produce and owners of exotic pets.

Environment Monitor
